Manufacturing Companies for Aluminum 20w Laser Marker - Fiber Laser Welding Machine-Handheld Type – Bec Laser Detail:

Product Introduction

The working mode of hand-held fiber laser welding machine, hand-held welding is flexible and convenient, and the welding distance is longer. Using a handheld welding gun to replace the previous fixed light path has the advantages of simple operation, beautiful welding seams, fast welding speed and no consumables.

For welding thin stainless steel plates, iron plates, galvanized plates and other metal materials, it can perfectly replace traditional argon arc welding, electric welding and other processes. Hand-held fiber laser welding machine is mainly used for laser welding of long-distance and large workpieces. The heat-affected area is small during welding, and it will not cause work deformation, blackening, and traces on the back. The welding depth is large, the welding is firm, and the melting is sufficient. There is no dent on the convex part of the molten material in the melting pool and the substrate.

Handheld Fiber laser welding machine is a laser welding equipment which couples the high energy laser beams into the optical fiber, after long-distance transmission, then transformed into parallel lights through collimating mirror to be focused on the work piece to implement the welding. The welding methods include vertical welding, paraller welding, stitch welding and so on.

Features

1. Fast welding speed, 2~10 times faster than traditional welding.

2. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

3. The amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.

4. High cooling rate, which can weld fine weld structure and good joint performance.

5. Laser welding has less consumables and long service life.

6. Easy operating need no training, more environmentally friendly.

Application

Laser welding can be used in welding stainless steel, aluminum, copper, chromium, nickel, titanium and other metals or alloys, can also be used for a variety of welding between different materials, such as: copper – brass, titanium – gold, Titanium – molybdenum, nickel – copper and so on.

Parameters

Model BEC-HW1000 BEC-HW1500
Laser Power 1000W 1500W
Laser Wavelength 1080 nm ±5
Laser Type Continous impulse
Laser Source Raycus ( Optional )
Optical Cable Length 5m/8m
Laser Pulse Frequency 1~5KHz
Laser Head Brand Ospri
Water Chiller 2P, Inbuilt chiller
Optical Lens 20*3mm
Gas Nitrogen/Argon
Working Temperature Temperature 5-35 ° C, humidity 20% -80%
Total Power 6KW 8KW
Power Requirement 380V±20% 3 phase/50Hz or 60Hz
Packing Size & Weight Machine: 122*80*142cm, laser source: 66*88*43cm; Gross weight: 274KG

Samples

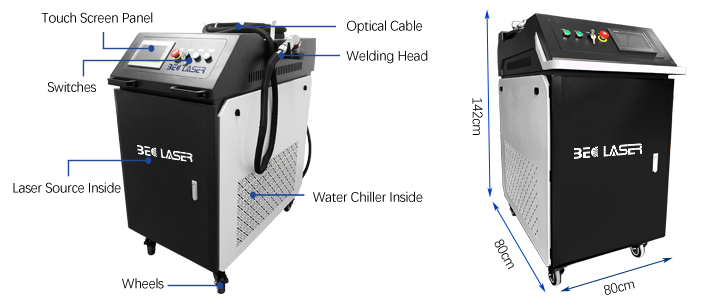

Structures

Details


Product detail pictures:

Manufacturing Companies for Aluminum 20w Laser Marker - Fiber Laser Welding Machine-Handheld Type – Bec Laser detail pictures

Manufacturing Companies for Aluminum 20w Laser Marker - Fiber Laser Welding Machine-Handheld Type – Bec Laser detail pictures

Manufacturing Companies for Aluminum 20w Laser Marker - Fiber Laser Welding Machine-Handheld Type – Bec Laser detail pictures
