Renewable Design for Handheld Fiber Laser Marking Machine - Fiber Laser Marking Machine – Integrated Model – Bec Laser Detail:

Product Introduction

Integrated fiber laser marking machine, according to its meaning, the device is integrated into one piece, so its volume is much smaller than other laser marking machines.

From the appearance point of view, the structural design is compact, which has the advantages of small size and small footprint; In terms of weight, it is lighter than other laser marking machines, does not need to spend a lot of manpower, and can save manpower.

In addition, the body has two handles to facilitate people to move the machine. Under various advantages, it is deeply loved by customers.

The most important thing is that it has no pollution, no optical power coupling loss, no air cooling, high efficiency and stability, and a service life of more than 10,000 hours.

The power we have 20W / 30W / 50W can be optioned.

Features

1. Integrated structure, small and compact size.

2. High electro-optic conversion efficiency, no maintenance.

3. Whole machine with 16KG lightweight, easy to carry and save space.

4. Most popular design, stable performance.

5. Double red focus light helps to find the focus easier.

6. Human-friendly design makes laser marking more convenient.

Application

Applicable Industries:Mobile phone, electronic components, electrical appliances,communication products, sanitary ware, tools, accessories, knives, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel and other industries.
Applicable Materials:Metals(Aluminum; Stainless steel; Brass), Plastic(ABS/PE/PVC etc,.)

Parameters

Model F200I F300I F500I
Laser Power 20W 30W 50W
Laser Wavelength 1064nm
Minimum Line Width 0.02mm
Single Pulse Energy 0.67mj 0.75mj 1.0mj
Beam Quality <1.5M² <1.6M²
Spot Diameter 7±1
Repeat Frequency Adjustment Range 30-60HZ 40-60HZ 50-100HZ
Minimum Characters 0.1mm
Marking Range 110mm×110mm/ 160mm×160mm optional
Marking Speed ≤7000mm/s
Cooling Method Air cooling
Operating Environment 0℃~40℃(Non-condensing)
Electricity Demand 220V ( 110V) /50HZ ( 60HZ)
Packing Size & Weight Around 73*25*33cm; Gross Weight Around 30 kgs

Samples

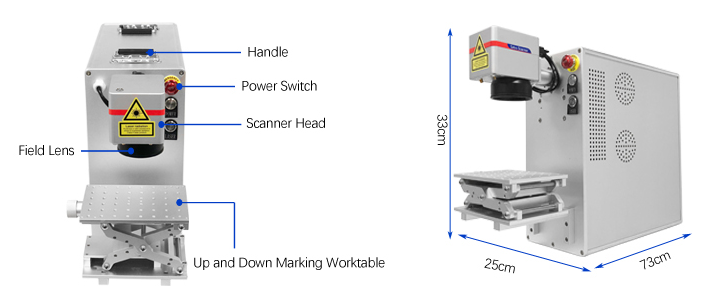

Structures

Details


Product detail pictures:

Renewable Design for Handheld Fiber Laser Marking Machine - Fiber Laser Marking Machine – Integrated Model – Bec Laser detail pictures

Renewable Design for Handheld Fiber Laser Marking Machine - Fiber Laser Marking Machine – Integrated Model – Bec Laser detail pictures

Renewable Design for Handheld Fiber Laser Marking Machine - Fiber Laser Marking Machine – Integrated Model – Bec Laser detail pictures
